The ElysION™ is a fully automated sample-to-answer sequencing solution with an integrated MinION™ and onboard computing. It is designed to bring streamlined genomics into the lab by offering a range of end-to-end sequencing workflows for a broad field of research applications.

The ElysION device is a combined liquid handling, sequencing and analysis solution that is intended for use in a laboratory setting. The ElysION device enables automated sample extraction, nanopore library preparation, sequencing and analysis, from a range of input materials.

This device is for research use only.

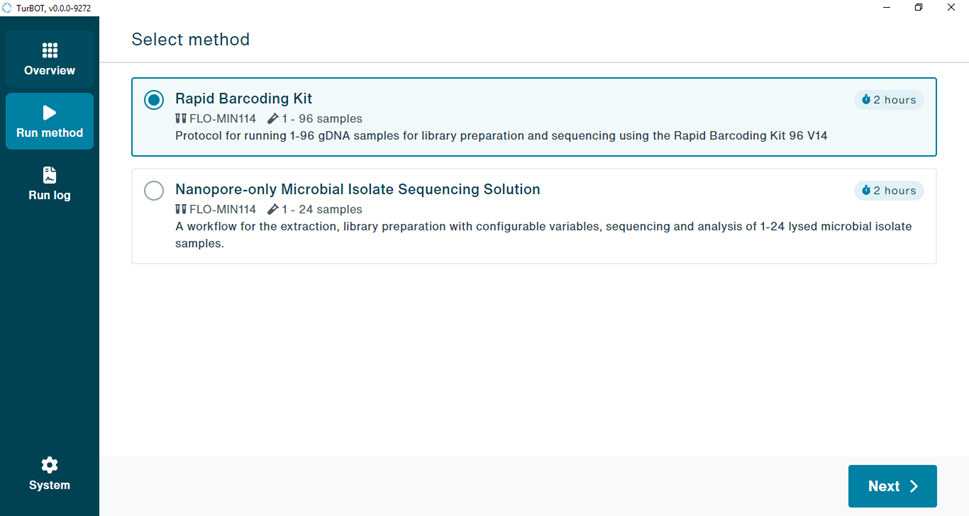

Current supported Oxford Nanopore Technologies' workflows:

• Rapid Barcoding Kit 96 V14 (SQK-RBK114.96)
• Native Barcoding Kit 96 V14 (SQK-NBD114.96)
• Nanopore-only Microbial Isolate Sequencing Solution (NO-MISS)
• Rapid sequencing V14 - Plasmid sequencing

Current supported kits:

• Rapid Barcoding Kit 96 V14 (SQK-RBK114.96)
• Native Barcoding Kit 96 V14 (SQK-NBD114.96)
• Flow Cell Wash Kit XL (EXP-WSH004-XL)

Current supported flow cells:

• MinION Flow Cells R10.4.1 (FLO-MIN114)

Package includes:

• 1x ElysION Sample Preparation Device
• 1x ElysION Integration Kit - MinION
• 1x ElysION Control Unit - MinION
• 3x MinION Mk1D sequencing devices
• 3x MinION Flow Cells R10.4.1 (FLO-MIN114)
• 1x Rapid Barcoding Kit 96 V14 (SQK-RBK114.96)
• 1x License and Warranty (12 months)

Also included:

• Installation of instrument and software
• Installation qualification
• On-site training

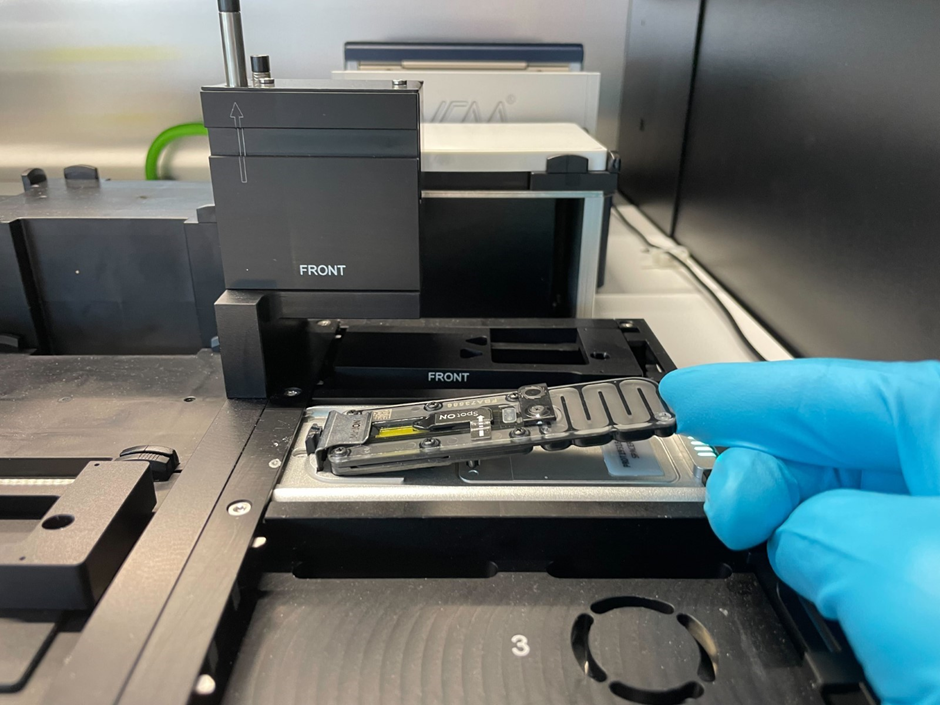

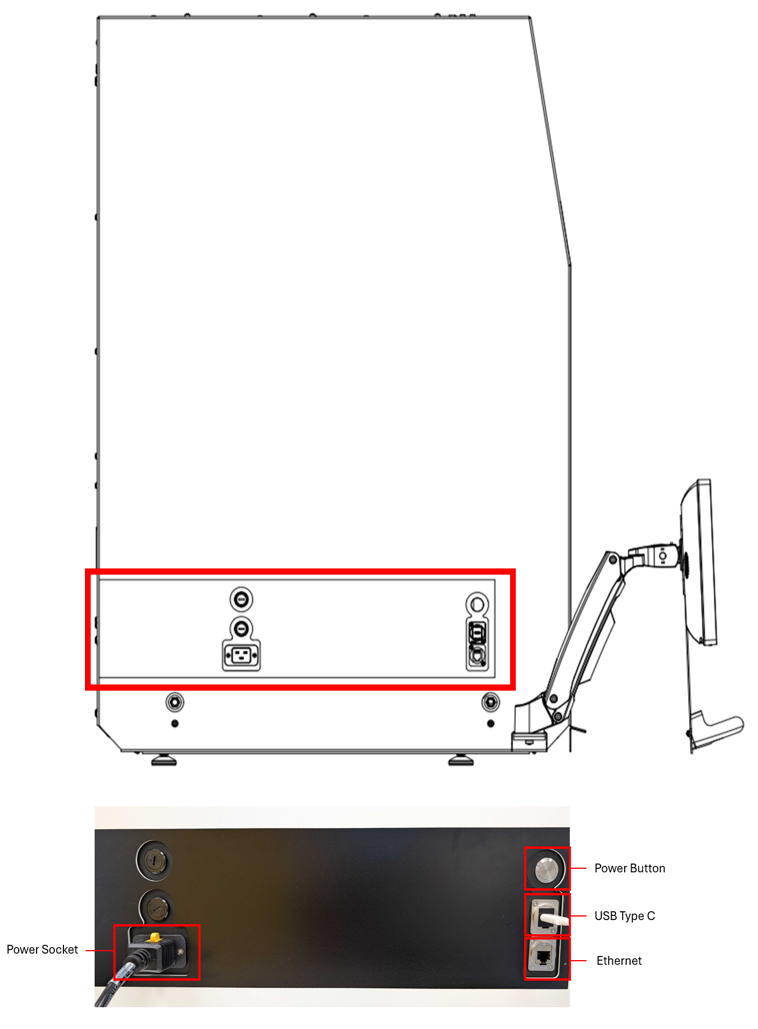

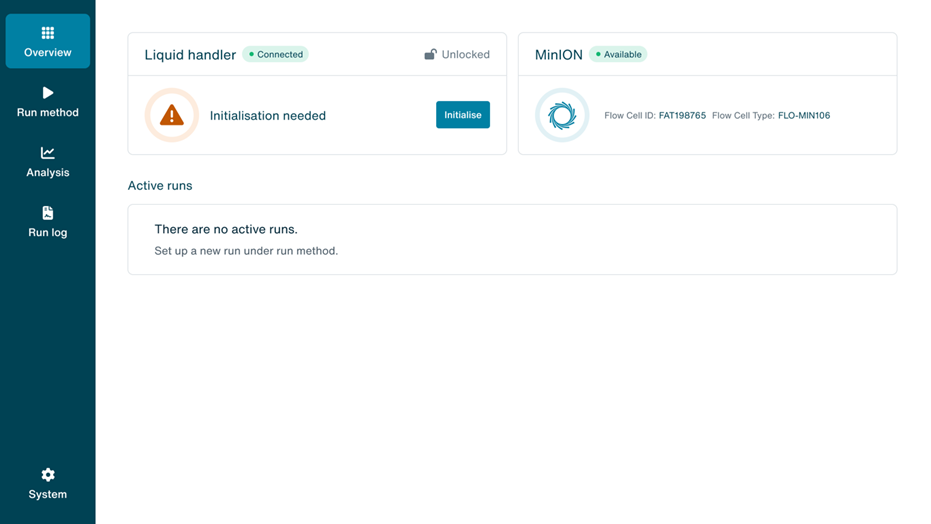

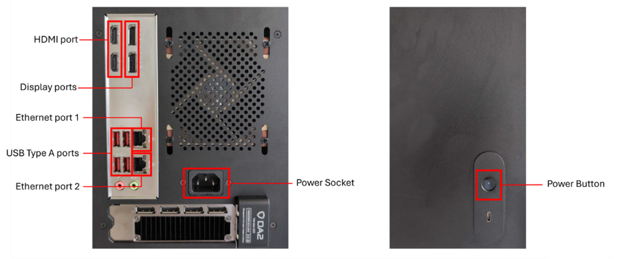

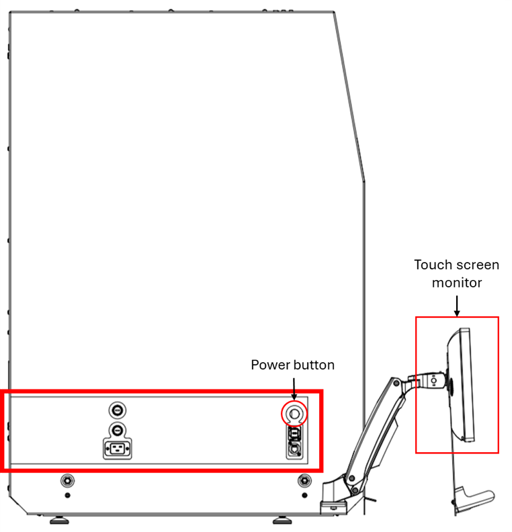

Attach the cables and peripherals to the ports shown in the image.

Attach the cables and peripherals to the ports shown in the image.

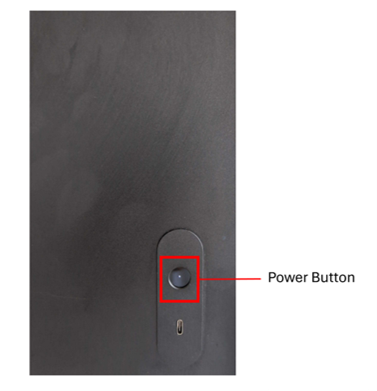

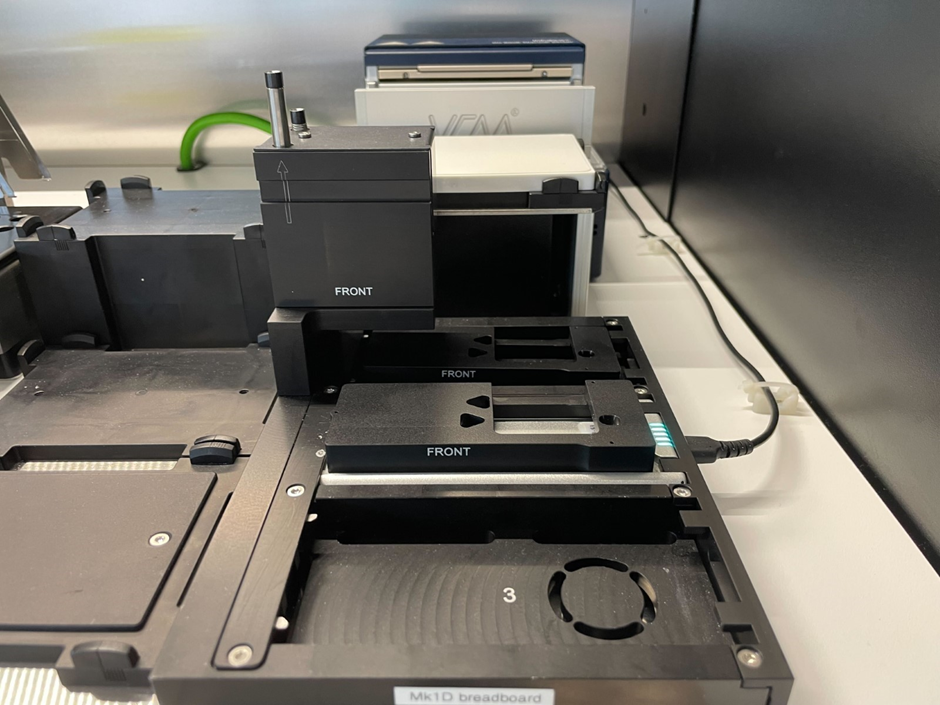

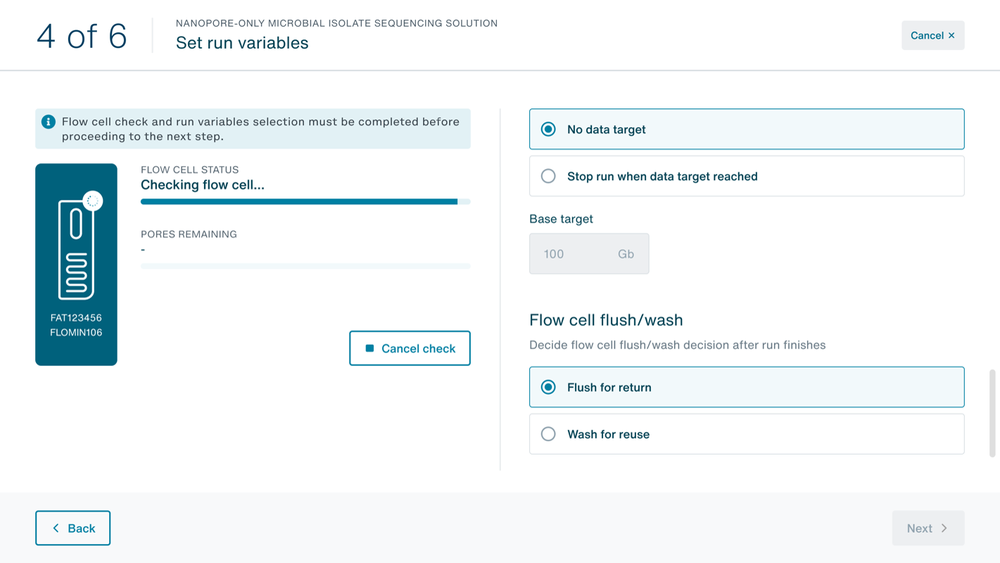

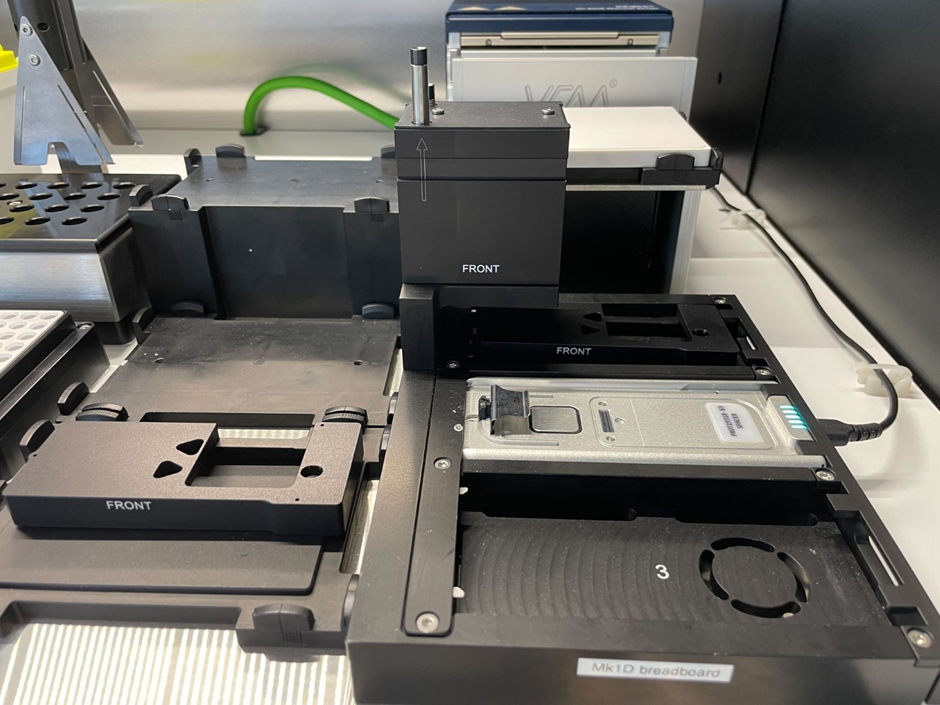

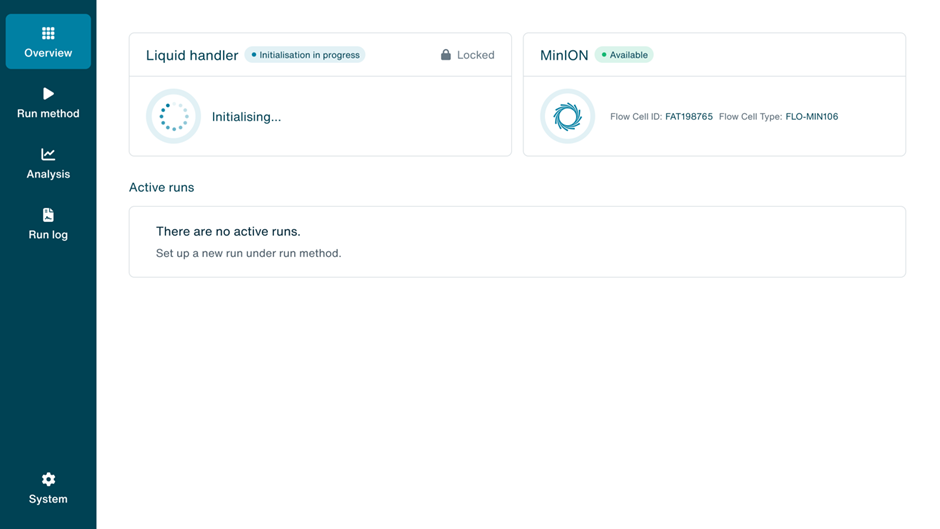

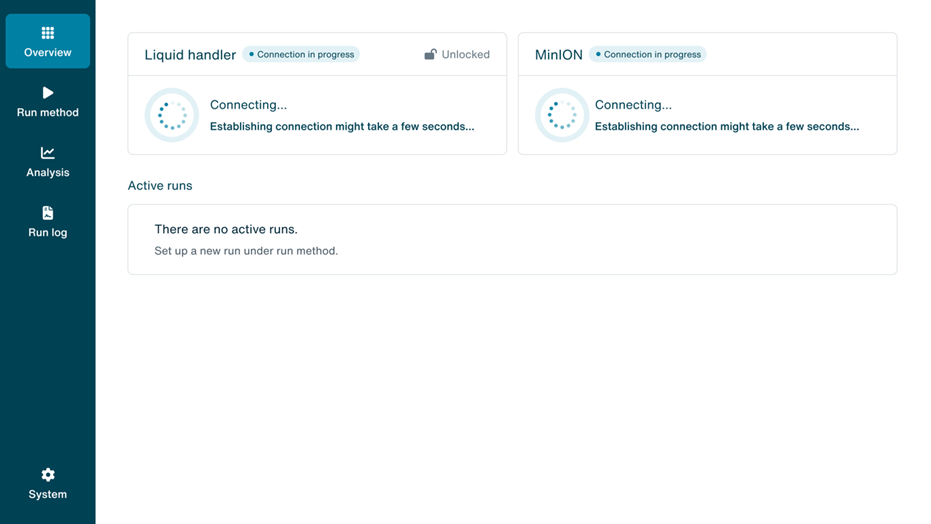

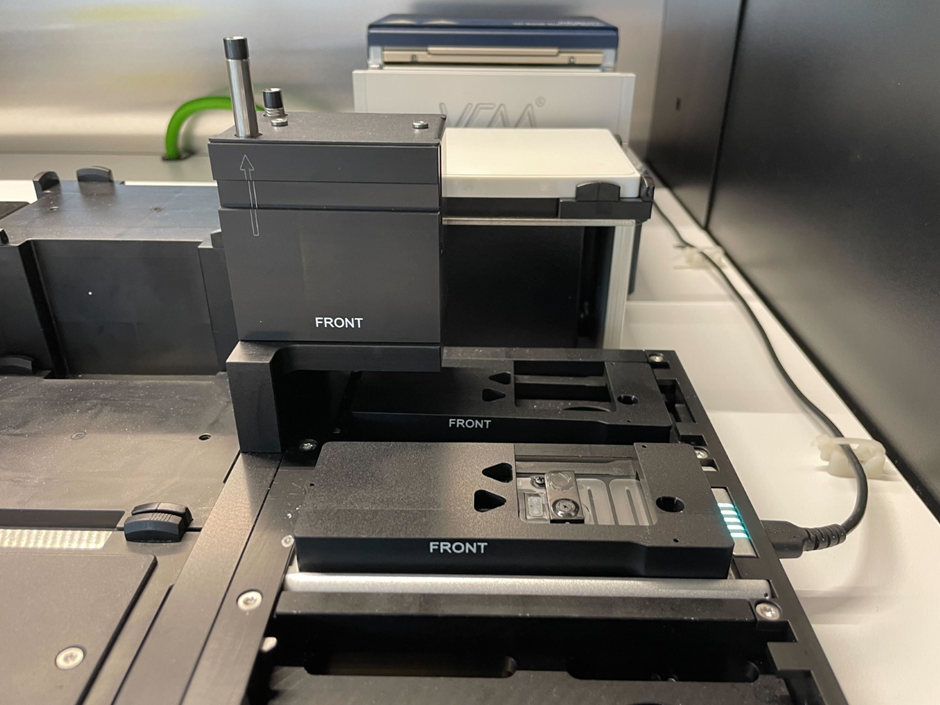

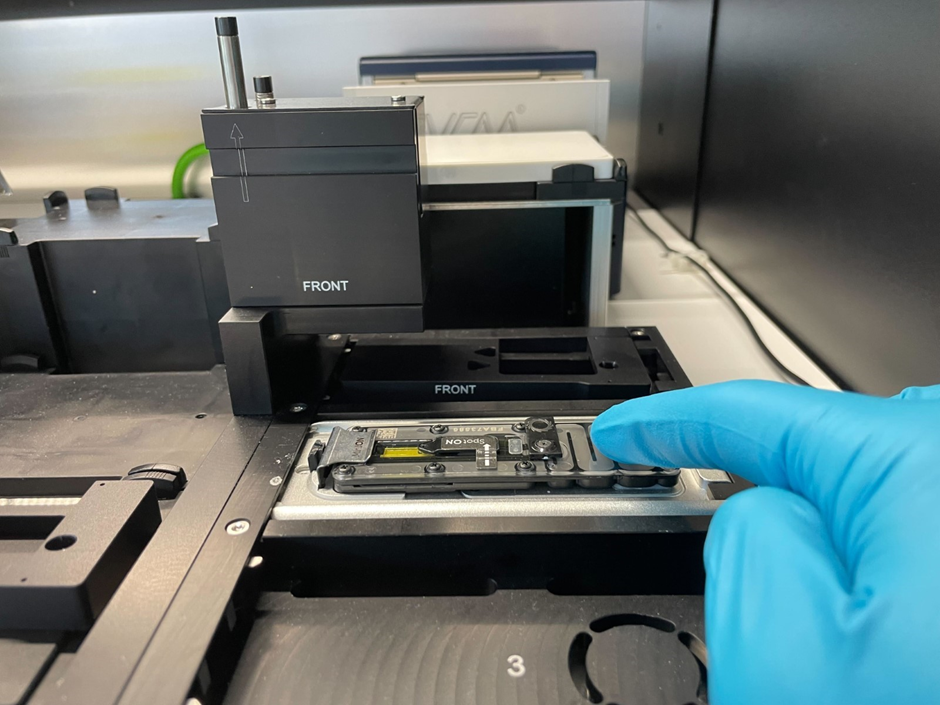

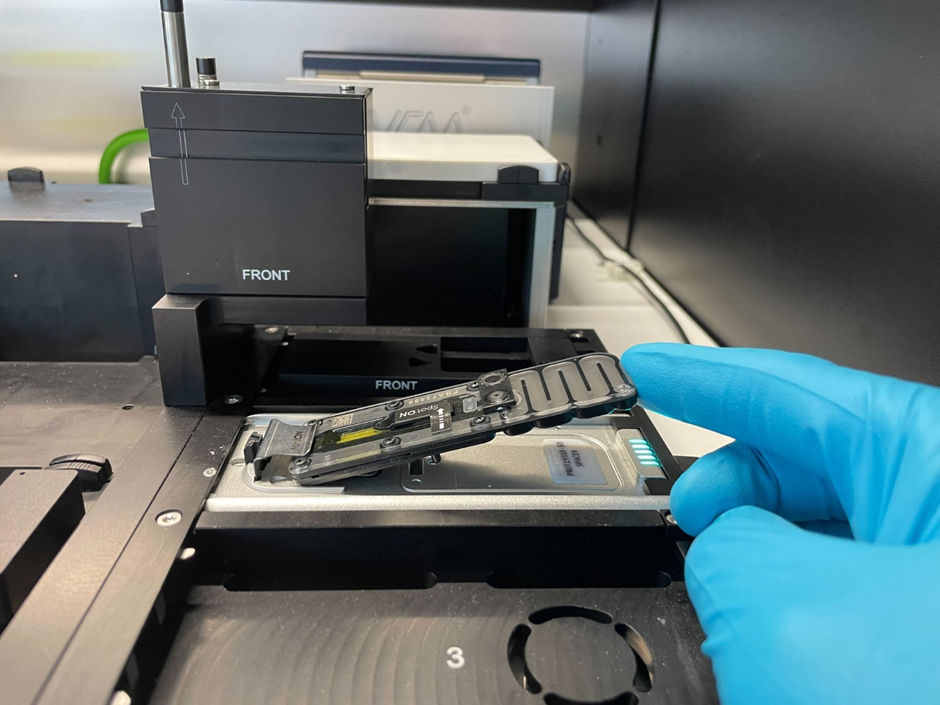

During the preparation of the device and ahead of starting a workflow, there are three optional variables that can be set.

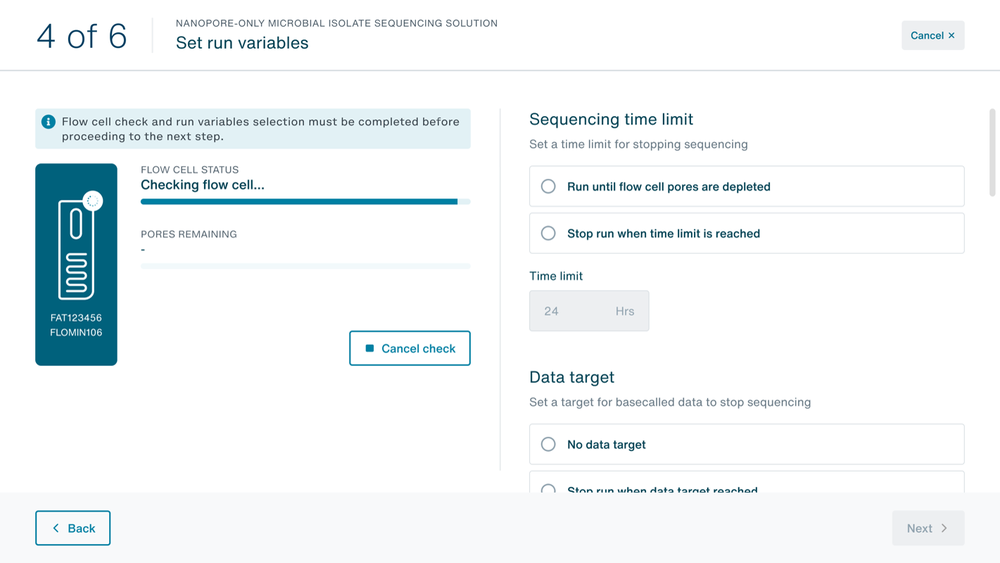

This variable gives you the option to set the maximum length of time (in hours) the instrument will sequence for or the option to run until the flow cell pores are depleted (5% of total pore count). When either the time limit has been reached or the pores have been depleted, the instrument will stop sequencing and proceed to the next step in the workflow.

This variable allows you to set a maximum sequencing data output (in Gbases). Once this data target has been achieved, the instrument will stop sequencing and proceed to the next step in the workflow. Alternatively, where no data target is set, sequencing will stop according to the set 'sequencing time limit' variable.

Note: Sequencing will stop when either the set sequencing time limit or set data target has been met. For example, if the sequencing time limit is set to 72 hours and the data target is set to 20 Gbases, and sequencing produces 20 Gbases in 48 hours, sequencing will stop before the 72 hours time limit.

This variable allows you to decide what happens to the flow cell once sequencing has completed. Flushing prepares the flow cell for return to Oxford Nanopore Technologies for recycling. Washing cleans the flow cell to allow multiple use of the same flow cell.

Note: Flush/Wash choices will require different reagents to be used. Washing will require an additional Oxford Nanopore Technologies' Flow Cell Wash Kit (EXP-WSH004).

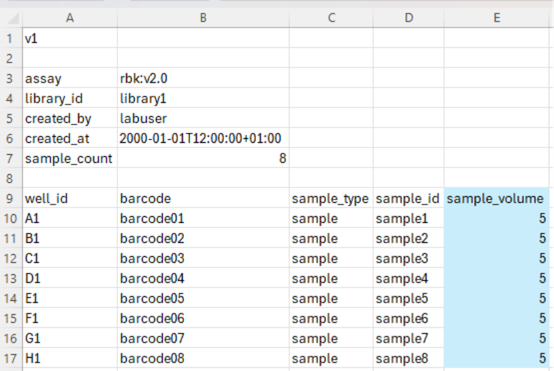

All ElysION workflows require a sample sheet in order to perform a workflow. The sample sheet performs several functions:

• Instructs the instrument on how many samples to process.
• Instructs the instrument on which barcodes to attach to samples and to include in analysis.

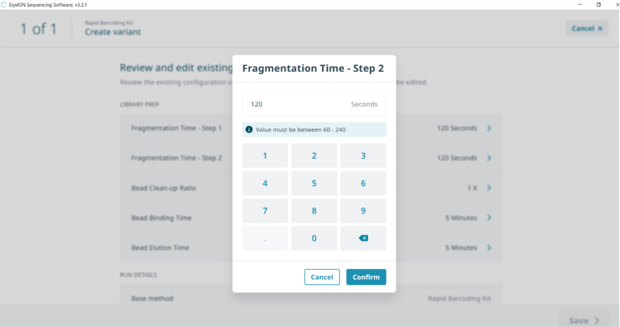

Sample sheets contain unique parameter values required for the specific workflow being run. You can alter the parameters to ensure correct preparation of samples. If sample sheet parameters do not match the workflow assay or are in the incorrect format, the sample sheet will be rejected.

To avoid issues when writing a new sample sheet, we recommend you always design a new sample sheet from the template provided by Oxford Nanopore Technologies.

Values which must not be altered on the sample sheet (highlighted in pink):

Values which can be altered on the sample sheet (highlighted in green):

Rules of editing values on the sample sheet:

• library_id: any text to identify one library from another in a human readable format.
• created_by: any text to identify the user who wrote the sample sheet in a human readable format.
• created_at: the time stamp that the sample sheet file was created. This must be in the ISO 8601 format.

ISO 8601 formatting:

• 2024-06-21: The date (Year-Month-Day).
• T: The separator between the date and time (standard in ISO 8601).
• 14:07:14: The time in 24-hour format (Hours:Minutes:Seconds).
• +01:00: The time zone offset from UTC (in this case, it is 1 hour ahead of UTC).

sample_count: The exact number of samples being processed by the instrument given as an integer value. This value must be within the range possible for the workflow being prepared (see workflow specific documentation).

well_id: The id of the wells that the samples start in. This must always start at A1 and continue in a column wise list, with no gaps. The total number of well ids listed in the sample sheet must be equal to the sample count value also provided. Examples of correct and incorrect well_id configurations are shown in the Table:

Correct well_id configuration	Incorrect well_id configuration
A1, B1, C1, D1, E1, F1, G1, H1, A2 and sample count = 9	B1, C1, D1, E1, F1, G1, H1, A2, B2 (A1 missing)
	A1, B1, C1, D1, F1, G1, H1, A2, B2 (E1 missing)
	A1, A2, A3, A4, A5, A6, A7, A8 (Row format)
	A1, B1, C1, D1, E1, F1, G1, H1 and sample count = 9 (only 8 samples listed)

barcode: This list of barcode ids specifies which barcode from Oxford Nanopore Technologies' barcode plate is delivered to each sample (as specified in the well_id column). The first barcode can be taken from any position in the barcode plate however, all subsequent barcodes must follow in sequential order. The total number of barcode ids must match the total number of samples provided. Each barcode can only be used once and must be formatted as a two-digit number. Examples of correct and incorrect barcode configurations are shown in the Table:

Correct barcode configuration	Incorrect barcode configuration
barcode01, barcode02, barcode03, barcode04, barcode05, barcode06 and sample count = 6	barcode03, barcode04, barcode05, barcode06, barcode01, barcode02 (not sequential)
barcode06, barcode07, barcode08, barcode09, barcode10, barcode11, and sample count = 6	barcode01, barcode02, barcode03, barcode04, barcode05, barcode08 (not sequential)
	barcode08, barcode09, barcode010, barcode11, barcode12, barcode13 (barcode010 has 3 digits)
	barcode01, barcode02, barcode03, barcode04, barcode05, barcode06 and sample count = 8 (only 6 samples listed)

sample_type: The sample type flag which is used during post-basecalling analysis in EPI2ME. Defaults as 'sample' if post-basecalling analysis is not required. If you plan to do analysis, see the workflow specific documentation.

sample_id: The sample id which is used during post-basecalling analysis in EPI2ME. Defaults as a unique integer if post-basecalling analysis is not required. If you plan to do analysis, see the workflow specific documentation.

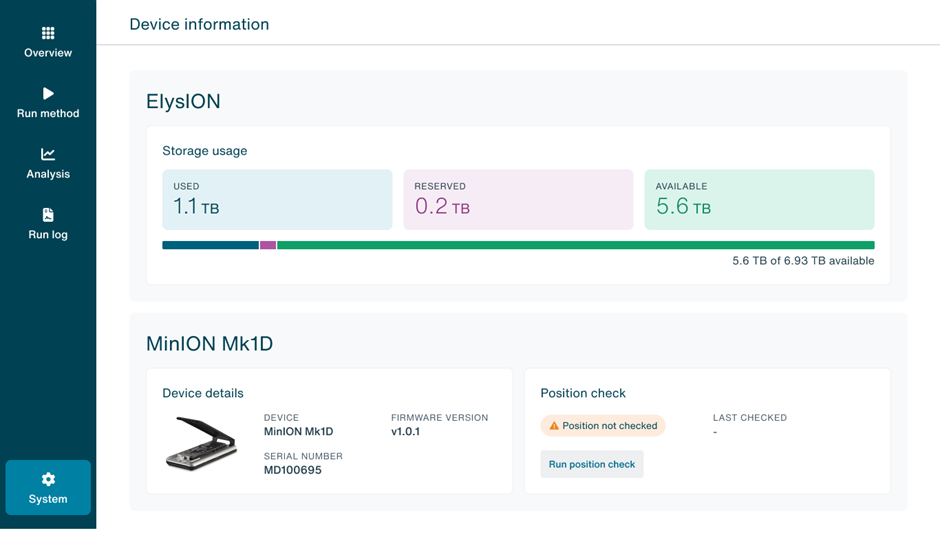

Default data output for ElysION is FASTQ file format only.

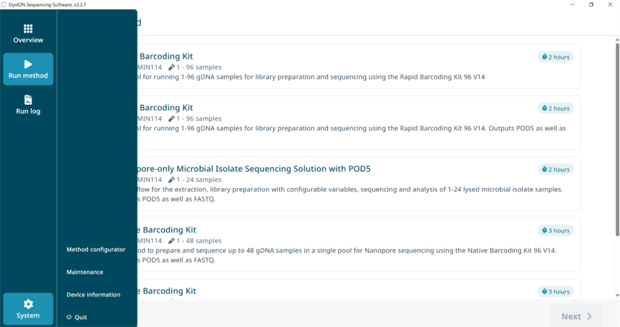

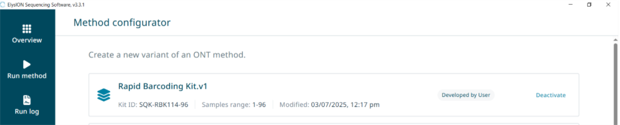

If you wish to enable POD5 file format storage on your ElysION device, please contact your FAS or local Oxford Nanopore Technologies account manager.

For more information on the files generated during sequencing and their formats, please refer to our data analysis documentation.

For full details of the maintenance and decontamination procedures, please refer to the 'ElysION operating manual' provided with your ElysION device.

The device should be cleaned with any of the listed agents and dried with a lint-free cloth. Use of any other chemical agents than those listed below or listed in the 'ElysION operating manual' may cause damage to the instrument or risk injury to you.

Cleaning agent	Specification
DI water	Distilled or deionized water
Alcohol	70% ethanol or 100% isopropanol (2‑propanol)
Weak detergent	Liqui-Nox
Disinfectant	Bacillol plus, Bomix, Lysetol FF
System liquid	Distilled or deionized water
Base	0.025 to 0.25 mol/L sodium hydroxide
Bleach	6% sodium hypochlorite
RNase AwayTM decontamination reagent	Alkali hydroxide <0.1%

Please refer to the 'ElysION operating manual' included with your ElysION device for details of the maintenance schedule.

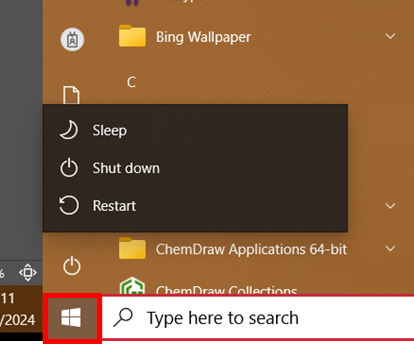

• Empty both waste containers.
• Either decontaminate or replace with new waste containers.

Clean the following with 70% ethanol:

• waste drawer
• DiTi drop station
• ElysION device touch screen monitor

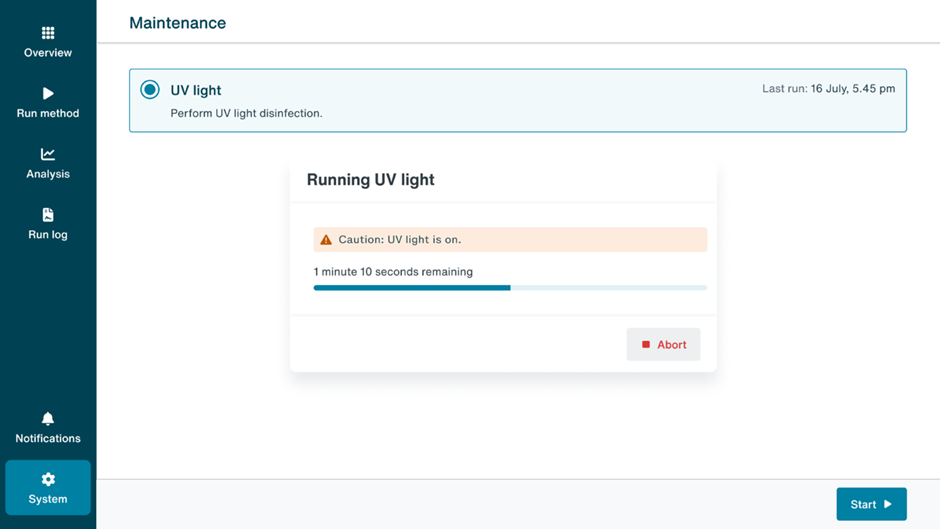

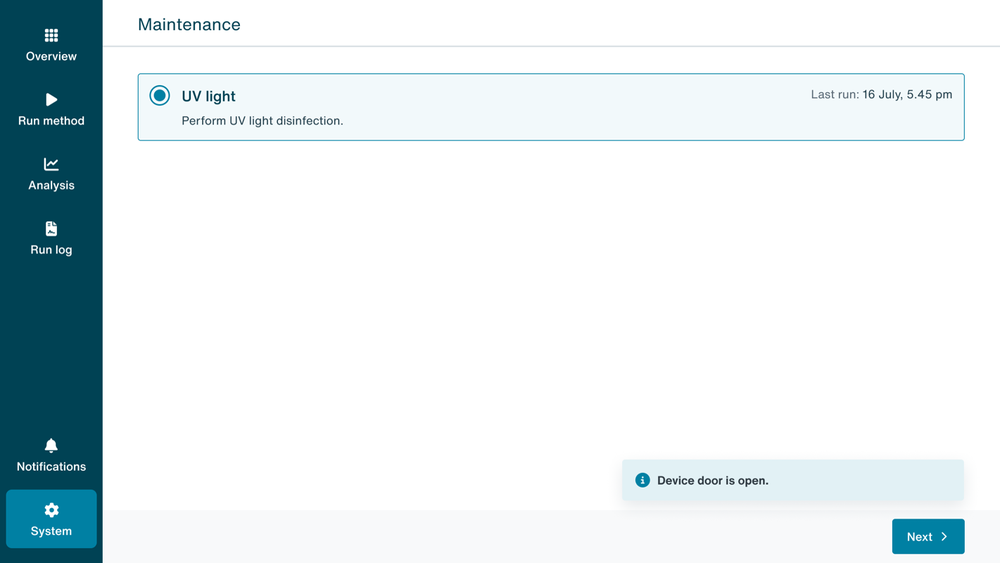

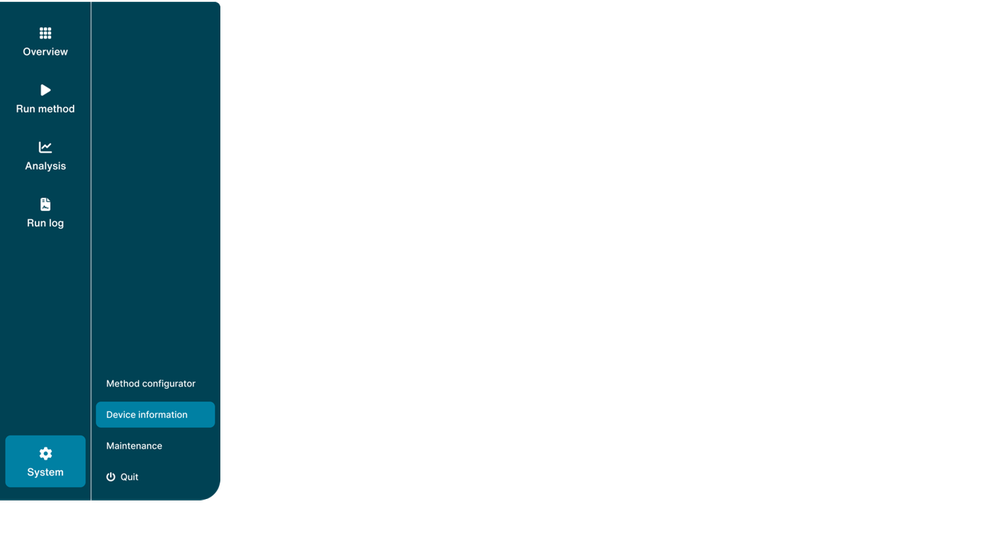

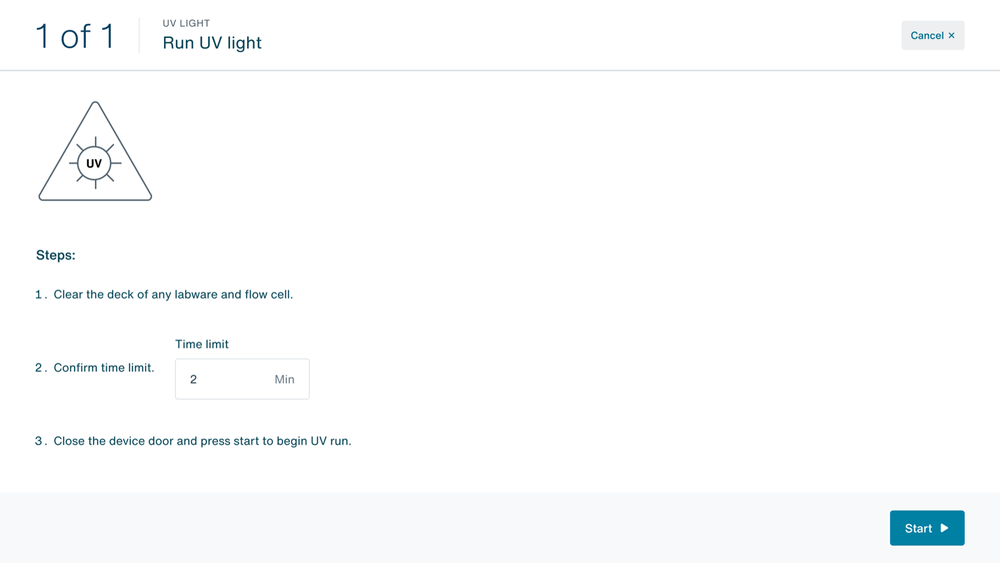

Please refer to the 'ElysION operating manual' for more information.

The serial number for the ElysION can be found on the rear panel of the instrument. See images below:

The serial number for the Compute Control Unit can be found on the rear side of the unit, as shown in the image below:
